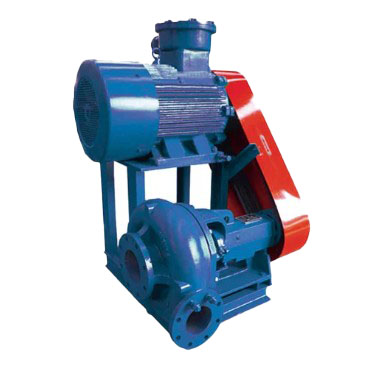

BZJQB Shear Pump

BZJQB Shear Pump

BESDRILL shear pump China is mainly used to shear polymers and bentonite in mixed drilling mud. The shearing process eliminates fish eyes and prevents polymer chaining (long strings) in the mud system, which would otherwise block the shale shaker screen.

It accelerates the dilution and hydration of polymers, reduces polymer consumption, and significantly improves mud mixing efficiency.

As one of the leading shear pump manufacturers in China, BESDRILL provides high-performance shear pump solutions with competitive pricing and reliable quality.

分类：

Key Features

  • High Shearing Efficiency (>95%)
    Unique impeller and shear plate design for fast and uniform fluid shearing and mixing.

  • Durable Stainless Steel Shear Plate
    Built to withstand corrosion and abrasion, ensuring long-term performance in tough drilling environments.

  • Reduces Bentonite Usage by 15%
    Enhances bentonite particle hydration, saving material cost and improving fluid properties.

  • Fluororubber Oil Seal
    High-quality imported seal with excellent cooling and sealing performance under high temperature.

  • Reliable Mechanical Seal
    Ensures smooth operation, low maintenance, and extended service life.

Applications

  • Drilling fluid shearing and conditioning

  • High-viscosity fluid mixing

  • Chemical slurry homogenization

  • Oil-based/water-based mud treatment

Technical Specifications

Parameter BZJQB6X5-37 BZJQB6X5-55
Capacity 100 m³/h (367 GPM) 155 m³/h (568 GPM)
Head (Lift) 28 m 32 m
Motor Power 37 kW 55 kW
Speed 1900 RPM 2280 RPM
Explosion Proof ExdIIbt4 / IECEX / ATEX ExdIIbt4 / IECEX / ATEX
Weight 800 kg 980 kg
Dimensions (L×W×H) 1050×1000×1260 mm 1150×1100×1500 mm

Working Principle

BZJQB shear pump uses a high-speed impeller or rotor-stator mechanism to generate powerful shear forces.
It draws fluid in, forces it through a narrow gap, and breaks down solids, disperses particles, and emulsifies liquids — producing a homogeneous, consistent mixture.

Ideal for processing abrasive, high-viscosity, or shear-sensitive fluids in drilling, chemical, and industrial fluid applications.
