High ROP
Unique cutter arrangement and location can keep cutting edge sharp in the drilling to obtain the maximum ROP.

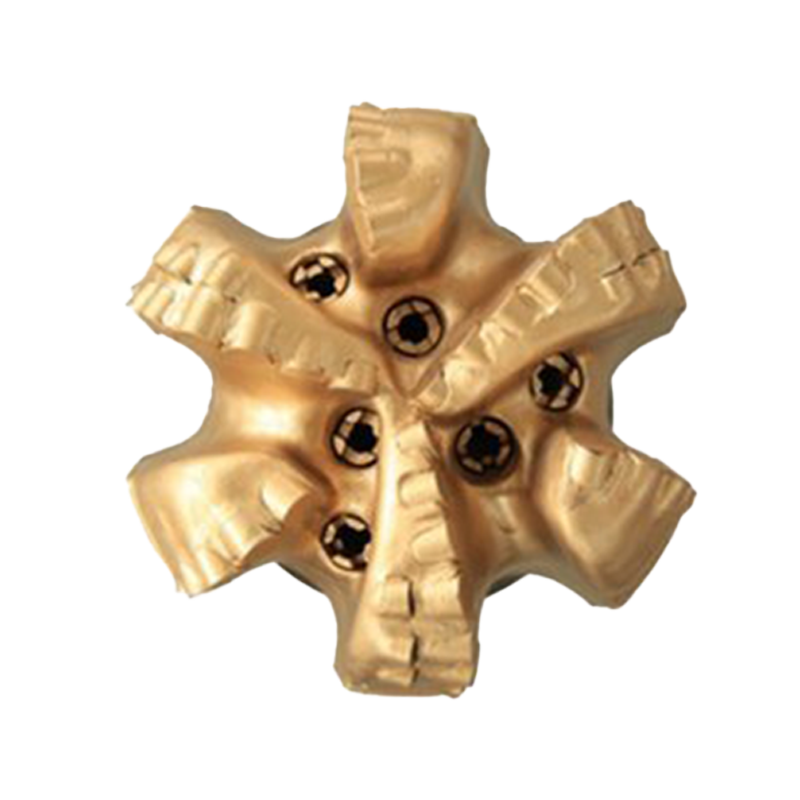

Spiral And Asymmetric Blade Design
Specific cutter layout enhances the bit stability and can get more footage in interbedded formations application.
Multi-function Hydraulics
The deep slot and straight blade design can get the high ROP in soft formations and can better cool the bit in the hard and abrasive formations.
| Bit Specification | |||||||
| Size | IADC | Blades | Nozzles | Cutter size | Gauge Length | Junk Slot Volume | API Pin |
| in | in | in | In2 | in | |||
| 6 | M332 | 6 | 4 | 1/2 | 2 | 9.4 | 3 1/2 |
| 8 1/2 | M332 | 6 | 6 | 1/2 | 3 | 16 | 4 1/2 |
| 12 1/4 | M332 | 6 | 6 | 1/2 | 4 | 36.9 | 6 5/8 |
